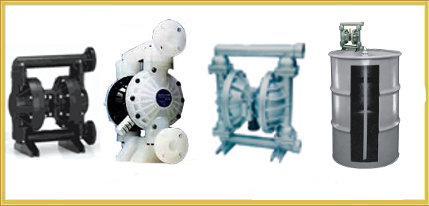

Air Operated Double Diaphragm Pump

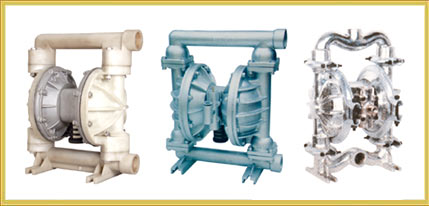

Air Operated Double Diaphragm Pump

( Click here to view Video Clip )

Range

Sr. No.	Model	Material of casing	Air Press in Bar	Max Solid Size in MM	*SucDis BSP**	Flow Range in LPM
1	AIRON 15	PP,SS,PVDF,AL	7	2.5	0.5"	0-25
2	AIRON 25	PP,SS,AL,PVDF	7	3.4	1"	0-59
3	AIRON 40	PP,SS,AL,	7	5	1.5"	0-137
4	AIRON 50	PP,SS,AL	7	6.5	2"	0-295
5	AIRON 80	ALUMINUM	7	10	3"	0-440

APPLICATIONS

To handle viscous chemicals,slurries
To transfer explosive liquids,solvents,acids.
Pharmaceutical liquids creams and compounds.
Semi solid foods, flavours, drinks, wine, beer, alchohols.
Waste water, sewage effluents, coal and lime slurry.
Hydrocarbons, petrol diesel, lubrication oil, vegetable oil.
Paints emulsions,pigments, thinners, resins.
Ceramics, Slip Gazes, Clays.

ADVANTAGES OF AODD PUMP

No seal , No Leakage
Self Priming,No need of foot valve.
Variable flow with same pump.
Can be submerge.
Less stock of spare to be maintain.
No skill person is needed to operation and repair pump.
Light weight, handy in use.
No rotation no wear & tear hence low maintenance.
Pump can run dry.
Stop Automatic on closing of discharge Valve.
Can handle 2 to 10 mm size solid particles.
Also Can be used upto accuracy 3 to 5 %.
No motor, No fire.
In short very simple and versatile pump.

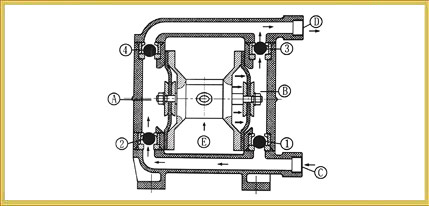

OPERATION PRINCIPLE

Dry air is given as input to air valve. Air will push both diaphragm ulternatively,
Four ball valves will act as NRV for suction and delivery.
As per liquid compatibility MOC of diaphradm ,valve and wetted part selected.
