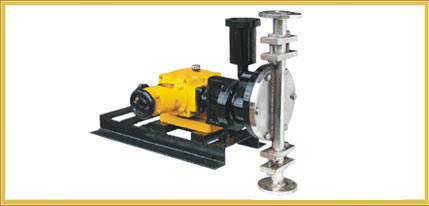

Metering and Dosing Pump

Metering and Dosing Pump

Range

MODEL	Motro HP	RPM	Flow Range LPH	Press kg/cm2
MOJPD10	0.25	1440	3.5 to 86	0 to 47
MOJPD20	0.5	1440	7 to 544	0 to 300
MOJPD30	1	1440	11 to 1540	0 to 300
MOJPD40	1.5	1440	20 to 3000	0 to 300
MOJPD60	2	1440	48 to 6134	0 to 300
MOJPD90	3 to 10	1440	200 to 14378	0 to 300

Application

Metering pumps are generally used in applications where low discharge in lit/hr. is required.
High system pressure exists.
Where the accurate feed rate demanded.
Viscous slurries or fluids need to be pumped.
High temp, corrosive, hazardous fluids to be handled.
Dosing in reverse osmosis systems. DM water plants.
Dosing of slurries in spray dryers, distilation coloumns.

Advantage

Flow and press can be adjustable as desired by setting the adjusting knob.(turn down ratio 10: 1)
The stroke of the pump can be controlled by manually.
Pumps are available in different material of construction to handle different chemicals as per the suitability.

Operation Principle

Plunger or diaphragm will push the liquid at slow speed.
Gear system is incorporated between motor and plunger or diaphragm to reciprocate at slow movement.
Mechanism to vary the reciprocation with metering scale is incorporated.
