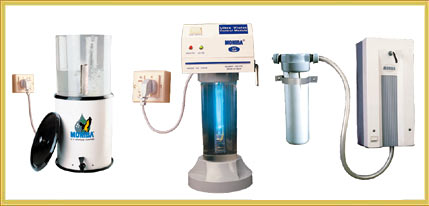

Range Technical Specifications for 1st Photograph (STORAGE TYPE UV WATER PURIFIER) Capacity | 1 Lit/Min.approx (if the bottom container is fully filled 0.4 Lit/Min if the bottom container is on 10% |
Moc of container | Food grade plastic |
Elect. supply | 230V + 10% 1Ph AC |
UV Lamp | 6 Watts |
Dimensions | ht 70cm * 32 cm dia |
Packing box dimensions | 40cm* 40 cm*32 cm |
Weight of pack purifier | 5.9 kg. |
Technical Specifications for 2nd Photograph (ONLINE TABLE TOP PURIFIER) Capacity | 1 Lit/Min.approx |
Elect. supply | Elect. supply |
UV Lamp | 6 Watts |
Dimensions | 8"* 7"*15.5" |
Weight Approx | 2.5 Kg. |
Technical Specifications for 3rd Photograph (WALL MOUNTING UV PURIFIER) Capacity | 2 Lit/Min.approx |
Filter cartridge | Multi layered PP Wound candle |
Elect. supply | 170 to 240V + 10% 1Ph AC |
UV Lamp | 8 Watts |
Dimensions | 165* 340*115 |
Weight Approx | 4 Kg. |
Application For drinking Bacteria and virus free water.
Advantage - Any purifier needs regular cleaning of prefilter claening . By positioning it outside the main body
- No great skill is required to clean and refit it.
- The special polymer tube(of Teflon) used for water passage, Does not require periodic cleaning
as teflons Non stick property leaves it clean all the time
Operation Principle - Moniba is four stage purifier.
Stage 1: candle bag to remove large turbidity.
Stage 2: candle to hold smaller particles.
Stage 3: The granulated silver imprignated carbon to absorb bad smell.
Stage 4:UV lamp to destroy bacteria and virus.
