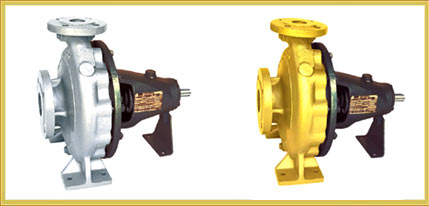

Back Pull Out Centrifugal Pump

Range

Model	Suc*Del Size In mm	Max Capacity m3/hr	Max Head in Metre	Model	Suc*Del Size In mm	Max Capacity m3/hr	Max Head in Metre
MOBP 32/13	50*32	22	24	MOBP 65/20	80*65	155	65
MOBP 32/16	50*32	24	40	MOBP 65/26	80*65	160	99
MOBP 32/20	50*32	26	64	MOBP 65/32	80*65	90	37
MOBP 32/26	50*32	30	103	MOBP 80/16	100*80	210	42
MOBP 40/13	65*40	38	25	MOBP 80/20	100*80	247	65
MOBP 40/16	65*40	41	39	MOBP 80/26	100*80	240	100
MOBP 40/20	65*40	42	63	MOBP 80/32	100*80	145	32
MOBP 40/26	65*40	43	96	MOBP 100/20	125*100	350	63
MOBP 50/13	65*50	80	26	MOBP 100/26	125*100	380	98
MOBP 50/16	65*50	90	41	MOBP 100/32	125*100	180	37
MOBP 50/20	65*50	84	65	MOBP 100/40	125*100	200	56
MOBP 50/26	65*50	84	100	MOBP 125/26	150*125	320	23
MOBP 65/13	80*65	127	26	MOBP 125/32	150*125	270	37
MOBP 65/16	80*65	142	41	MOBP 125/40	150*125	360	59

Application

• For cooling tower water circulation, Power plants, Irrigation systems
• Sugar industry, Paper industry, Wine distillery,Water supply systems of munciple corporation
• Air conditioning ,Different chemicals according to MOC, Fire fighting systems
• Sprinkler systems, swimming pools, Dam sites

Advantage

• Good Efficiency
• Rigid construction assures the durability of the pump
• it is a centrifugal pump with Back pull out design for easy maintenance
  without disturbing pipeline pump can be repaired
• Long service life, low operating cost, minimum downtime

Operation Principle
It is centrifugal pump,. Centrifugal force developed by impeller rotation transfer fluid at press.
