PP/PVDF Centrifugal Pump

Range

Sr. No.	Model	Motor Hp	RPM	Max Cap M3/Hr.	Max Head in M	Suction (mm)	Discharge (mm)
1	P-22-100-H	1.00	2900	0 - 6.5	13 - 0	25	25
2	P-44-120-H	2.00	2900	0 - 24	18 - 0	40	40
3	P-44-150-H	3.00	2900	0 - 22	24 - 0	40	40
4	P-47-160-H	5.00	2900	0 - 32	33 - 0	75	40
5	P-57-170-H	7.50	2900	0 - 60	34 - 0	75	50
6	P-47-210-L	3.00	1440	0 - 33	15 - 0	75	40
7	P-45-190-H	10.00	2900	0 - 58	49 - 0	50	40
8	P-57-210-L	5.00	1440	0 - 52	16 - 0	75	50
9	P-57-185-H	20.00	2900	0 - 96	42 - 0	75	50
10	P-44-205-L	2.00	1440	0 - 26	12 - 0	40	40

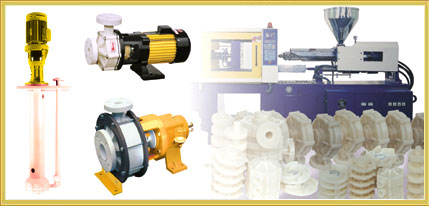

FIRST PHOTOGRAPH IS FOR MONOBLOCK CONSTRUCTION PUMPS
Cost Of Accessories Like Base Frame, Coupling, Coupling Guard Can Be Saved
SECOND PHOTOGRAPH IS FOR BARE SHAFT
THIRD PHOTOGRAPH FOR VERTICAL PUMP IN 500MM, 1000MM, 1500 MM LENGTH

Applications

• Scrubbing of corrosive gases like Cl2, F2, I2, SO2, SO3, CO3, NH3
• Effluent treatment, water treatment
• Pickling in steel rolling mills
• Drugs & pharmaceutical industries
• Filter press for dyes
• Electroplating, descaling
• Chemical, fertilizers, paper and pulp plant
• Thermal and automic power plant
• Rayon and staple fibre plant, copper zinc smelters
• Caustic soda plant, TiO2 plant, steel plants.

Advantages

• Volute , Impeller, are injection moulded polypropylene materials with
  smooth passage, hence it gives better efficiency.
• Less space required and easy to handle.
• Economical to transfer corrosive liquids.
• Shrouded vanes of open impeller constructed to handle slurries.
• Temprature range from 0 - to 80 Deg can handle by PP MOC.
• Temprature range from 0 - to 130 Deg can Handle by PVDF MOC.
• All components are interchangable

Note : These pumps are available in PVDF material of construction

Operation Principle

• Impeller mounted on shaft rotated by electrical motor.
• Volute casing and impller and back plat guides the liquid to flow
  smoothly to get the best efficiency.
• This is centrifugal pump.

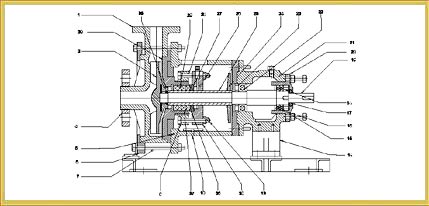

SPARES PARTS LIST:
SR .NO	DESCREPTION	M.O.C
1	VALUTE CASING	P.P
2	BACK PLATE	P.P
3	IMPELLER	P.P
4	SUCTION FLANGE	P.P
5	ADOPTER	C.I.
6	CAGE RING	C.I
7	HARDWARE SET FOR VOLUTE ASSLY.	SS
COMMON TO ALL
8	FLANGE FOR BACKPLATE	P.P
9	BUSH	GFT
10	DRIP - TRAY	FRP
11	STAIONARY RING FOR MACHSEAL -1 3/8"	CERAMIC
12	LOCATION FLANGE	BACK PLATE
13	PP COTAED NUT - 3/8" BSW	PP/MS
14	LEG SUPPORT FOR BEARING HOUSE	C.I
15	BALL BEARING 3306 MOTOR SIDE	STD
16	CIR.CLIP	STEEL
17	OIL SEAL 40X25X10 MOTOR SIDE	NEOPRENE
18	LOCK NUT WITH LOCK WAHSER	STEEL
19	BARE SHAFT	EN 8
20	BEARING COVER	C.I
21	BEARING HOUSING	C.I
22	BALL BEARING 6207 PUMP SIDE	STD
23	OIL SEAL 35X72X10 PUMP SIDE	NEOPRENE
24	DEFLACTOR	PP/MS
25	SHAFT SLEEVE FOR 1 3/8" SEAL	CERAMIC
26	ROTARY UNIT FOR MACHSEAL	TEF. BELLOWS
27	WASHER FOR STAIONARYPART OF MACHSEAL	PTFE
28	BOLTS FOR LOCATION FLANGE	SS-316
29	"O" RING	VITION
FOR GLAND PACKING ARRANGMENT
35	GLAND RING ( ONE SET = 4 RING )	GRAFIED FILL TEFLON
36	GLAND PUSHER	BACKELITE
37	GLAND HOUSE	GFT
38	LOCATION FLANGE	BACKELITE
39	BACK PLATE WITH BUSH FOR GLAND SET	PP
