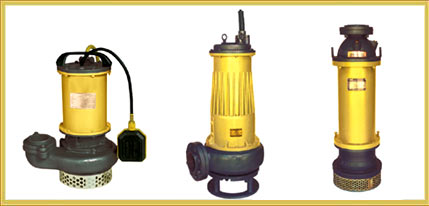

PORTABLE SUBMERSIBLE SEWAGE PUMP FIRST PHOTOGRAPH is for light weight portable sewage pump upto 7.5 HP use for flowing dirty water not for thick liquid like sludge. The float is provided in single phase model to automatic start and stop.
SECOND PHOTOGRAPH is for sewage pump up to 30 HP
THIRD PHOTOGRAPH for dewatering pump for water with stones
Pump is with PVC winding and water flow surrounding motor body to out let for cooling.
Range Model | H.P | Motor RPM | Phase | Capcacity in Lpm | Head in mm | Dis.Size in mm | Solid Handled. Size mm |
MOPSSF-0.5 | 0.5 | 2900 | 1 | 0 to 260 | 12 to 0 | 50 | 25 |
MOPSSF-1.0 | 1 | 2900 | 1 | 0 to 550 | 13 to 0 | 50 | 25 |
MOPSSF-1.5 | 1.5 | 2900 | 1 | 0 to 600 | 14 to 0 | 50 | 25 |
MOPSSF-2.0 | 2 | 2900 | 1 | 0 to 700 | 16 to 0 | 75 | 25 |
MOPST-3.0 | 3 | 2900 | 3 | 0 to 750 | 22 to 0 | 75 | 25 |
MOPST-5.0 | 5 | 2900 | 3 | 0 to 960 | 24 to 0 | 75 | 25 |
MOPST-7.5 | 7.5 | 2900 | 3 | 0 to 1400 | 26 to 0 | 100 | 25 |
SEWAGE PUMP RANGE Range Model | H.P | Motor RPM | Phase | IN M3/HR | IN MT | Dis.Size in mm | Solid Handled. Size in mm |
MONS10.0/6P/1 | 10 | 950 | 3 | 25-200 | 14.8-8.2 | 100 | 25 |
MONS15.0/6P/1 | 15 | 950 | 3 | 50-300 | 15-7 | 150 | 25 |
MONS20.0/6P/1 | 20 | 950 | 3 | 50-500 | 16-10 | 150 | 25 |
MONS30.0/6P/1 | 30 | 950 | 3 | 50-600 | 18-10 | 200 | 25 |
MONS10.0 | 10 | 1400 | 3 | 10-140 | 18.4-10 | 100 | 25 |
MONS15.0/1 | 15 | 1400 | 3 | 10-240 | 23.6-8.4 | 100 | 25 |
MONS20.0/1 | 25 | 1400 | 3 | 20-240 | 24-12.4 | 100 | 25 |
MONS30.0/1 | 30 | 1400 | 3 | 20-260 | 28.4-17 | 150 | 25 |
DEWATERING PUMP RANGE IN ALUMINIUM MOC Range Model | H.P | Motor RPM | Phase | Capcacity in Lpm | Head in m | Dis.Size in mm | Solid Handled. Size in mm |
MOD-3/10.0 | 10 | 2900 | 3 | 500-2150 | 24-14 | 150 | 25 |
MOD-3/15.0 | 15 | 2900 | 3 | 1050-2500 | 28-16 | 150 | 25 |
MOD-3/25.0 | 25 | 2900 | 3 | 1100-2750 | 32-18 | 150 | 25 |
MOD-3/30.0 | 30 | 2900 | 3 | 1200-3500 | 32-20 | 150 | 25 |
Application - Specially designed for the drainage of sewage water/ Septic tank,
Effluent treatmet, Waste water, Flood water and dirty water.
Advantage - Portable , Light weight, Handy in operation
- Can handle solid size 25 mm
- Low maintenance cost
- Double mechanical seals arrangement reduces the chances of motor worn out
Operation Principle - Motor is designed and sealed such a way that it can be submerged inside the liquid.
- The passage in impeller and volute casing it is large enough to handle the solid.
