Range Model | Motor HP | RPM | Phase | Max Flow in LPM | Max Head in M | Suction | Discharge |
MMP-1 | 3/16 | 2800 | 1 | 15 | 2.4 | 14 mm | 14 mm |
MMP-2 | 1/4 | 2800 | 1 | 30 | 3.4 | 18 mm | 18 mm |
MMP-3 | 5/16 | 2800 | 1 | 50 | 4 | 20 mm | 20 mm |
MMP-4 | 3/8 | 2800 | 1 & 3 | 80 | 6 | 25 mm | 25 mm |
MMP-5 | 1/2 | 2800 | 1 & 3 | 115 | 10 | 25 mm | 25 mm |
MMP-7 | 1.50 | 2800 | 3 | 280 | 20 | 1.5" bsp F | 1.25" Bsp M |
MMP-6 | 3.00 | 2800 | 3 | 520 | 25 | 2" npt F | 1.5" npt M |
Application - Pilot plants, Galvanizing, Anodizing, Plating Plants, Water treatment plants.
- Coolant pumping for leser systems & and machine tools.
- Etching machines,Metal finishing machines, Gas analysers, Spark errosion machines.
- X-ray photo processors, Color photo processors, Ultra sonic cleaners, Medical equipments.
- Solar heating systems ,I.C. photo engraving machines,Display devices,TV tube processing.
- Dairies, Soft drinks Bevarages, Pure water plant, Domestic Aquariem.
- General laboratories, Silver recovery systems, Water processors, ice makers.
Advantage - Leakproof pump without Mechanical seal and galnd packing.
- Light weight, Portable.
- Suitable for 0 to 80 deg temp.

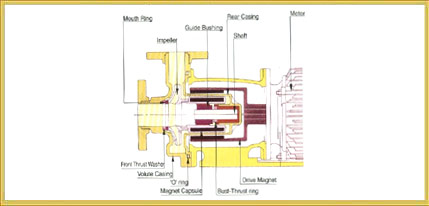

Operation PrincipleThe centrifugal pump is driven by a pair of magnet which are incorporated in the impeller and motor shaft respectively. The sealess pump structure elliminates shaft seals such as conventional mechanical seals, because the pump chamber is shielded the casing and the impeller is operated by magnet.The combine couplig torque of the drive magnet and impeller magnet drives sufficient driving power against the motor torque .
