Range Sr. No. | Model | Power HP | Suction size( inch) | Discharge size(inch) | Max flow LPM | Max Head in M |
1 | SSBC-25/120 | 0.5 | 1 | 1 | 0 to 115 | 18 to 0 |
2 | SSBC-25/138 | 1 | 1 | 1 | 0 to 220 | 24 to 0 |
3 | SSBO-25/138 | 1 | 1 | 1 | 0 to 200 | 22 to 0 |
4 | SSBC-25/142 | 1.5 | 1.5 | 1 | 0 to 325 | 24 to 0 |
5 | SSBC-50/114 | 1 | 2 | 2 | 0 to 480 | 16 to 0 |
6 | SSBC-40/114 | 2 | 2 | 1.5 | 0 to 420 | 24 to 0 |
7 | SSBC-25/160 | 3 | 1.5 | 1 | 0 to 400 | 35 to 0 |
8 | SSBC-25/180 | 5 | 1.5 | 1 | 0 to 600 | 50 to 0 |
9 | CEMRON | 1 | 1 | 1 | 0 to 220 | 22 to 0 |
CEMRON MODEL IS MONOBLOCK CONSTRUCTION PUMPS
COST OF ACCESSORIES LIKE BASE FRAME COUPLING, COUPLING GUARD CAN BE SAVED.
OTHER PUMPD ARE BARE SHAFT
Application - Pharmaceutical industry, chemical industry, food processing plant, milk feeding in dairy plants.
- Hot water transfer, spent wash disposal, liquid feeding systems.
- Scrubbing application, to handle effluent slurry.
- Mining industry, sugar industry, water treatment plant.
- Descaling, power plants, organic inorganic liquids.
- Solvant extraction, condensate handling, colour feeding in dyeing jet machines.

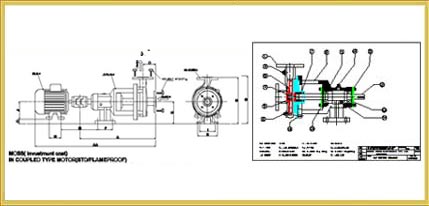

Advantages - Back pull out design offers maintenance friendly.
- Long service life, low operating cost, minimum downtime.
- Good quality casting with consistent surface finish hence it gives better efficiency.
- Versatile shaft sealing and gland packing arrangement.
- Proper Cooling arrangement for mechanical seal reduces chances of seal failure.

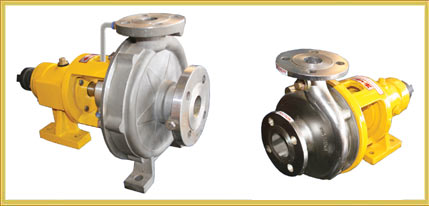

Operation Principle - Volute casing, impeller and back plate are manufactured from investment (wax) casting process
to get good fininshing and good flow of liquid at lesser power. - It is centrifugal pump.
- Multi spring seal which can work under low compressing pressure between two sealing area is generally Installed in the pump but if liquid has solid particles / slurry SIC VS. SIC.
OR TC VS. TC single spring seal is used
