Home » Industrial Pumps » Mud Pump (Self Priming)

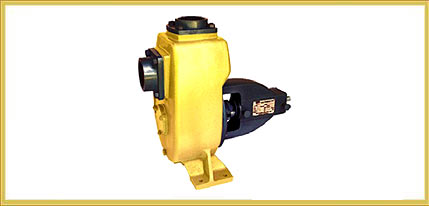

Mud Pump (Self Priming)

Mud Pump Self Printing

Range

Model	Rec. Motor (Hp)	Discharge LPS	Head M	*Suc Dis (mm)**	Speed (RPM)
MOSPM 101	1 (1 Ø, 3 Ø)	0 to 6.2	15 to 0	40 * 40	2850
MOSPM 102	2 (3 Ø)	0 to 9.2	22 to 0	40 * 40	2850
MOSPM 103	3 (3 Ø)	0 to 12	26 to 0	50 * 50	2900
MOSPM 104	5 (3 Ø)	0 to 20	32 to 0	80 * 80	2900
MOSPM 104 S	7.5 (3 Ø)	0 to 23	36 to 0	80 * 80	2900
MOSPM 105	5 (3 Ø)	0 to 20	18 to 0	80 * 80	1450
MOSPM 106	10 (3 Ø)	0 to 40	26 to 0	100 * 100	1450
MOSPM 106 S	12.5 (3 Ø)	0 to 45	28 to 0	100 * 100	1450
MOSPM 107	20 (3 Ø)	0 to 72	25 to 0	150 * 150	1450
MOSPM 107 S	25 (3 Ø)	0 to 80	28 to 0	150 * 150	1450

Application

Polluted liquid, muddy water or fresh water.
Dewatering basements trenches.
Swimming pools construction sites onboard shifts as blidge for desk wash & engine colling.
Tiles and marbles factories.
Any application where priming is to be avoided.

Advantages

Self priming
Compact in design
can handle solids
Can use with diesel engine
Sturdy and strong construction for outdoor application

Operation Principle

Pump is designed to retain the liquid at suction side of the casing to operate the pump as self priming
Sufficient space is maintained to handle the solids
First time priming is require to remove the air
Generally self priming is upto 5 metre
Foot valve is not required

»Request a Quote
