Home » Industrial Pumps » Barrel Pump

Barrel Pump

Barrel Pump

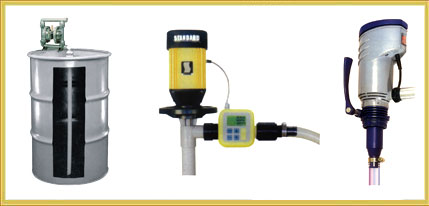

First Photograph is for AODD Pump as barrel empty pump.
Secong Photgraph is for electrically operated Barrel pump
Third Photograph for Air Motor Barrel Pump

Range

Model	Motor HP	Wt	Max Flow	Max Head	Max Viscosity
Low Viscous Drum Pump - Electric Driven, Nno Flp
MOA 40E/0.5	350 W/1 Phase	8 Kg	60 lpm	8 M.	150 cps
MOA 40E/1.0	700 W/1 Phase	8 Kg	70 lpm	12 M.	300 cps
MOA 40E/1.5	1050 W/1 Phase	8 Kg	100 lpm	18 M.	500 cps

Low Viscous Drum Pump - Air Driven
MOA 40A/0.6	0.6 HP/18 CFM@3-6 Bar	6 Kg	90 lpm	15 M.	300 cps
High Viscous Drum Pump - Electric Driven, Non Flp
MOA 40 E HVS/1.0	1.0 HP/960 RPM/3 Phase	18 Kg	50 Kg/Min.	8 Bar	10000 cps
MOA 40E HVS/ 1.5	1.5 HP/960 RPM/3 Phase	18 Kg	30 Kg/Min.	8 Bar	3000 cps
MOA 40E HVS/ 2.0	2.0 HP/960 RPM / 3Phase	24 Kg	15 Kg/Min.	8 Bar	30000 cps
High Viscous Drum Pump - Air Driven
MOA 40 HVS/1.2	1.2 HP/30 CFM@3-6 Bar	12 Kg	30 Kg/Min.	8 M.	15000 cps

Application

To transfer highly viscous liquids like mollases Syrup, Liquid Chocolate, honey, Liquid Soap, wax.
Suitable for salt solutions, toxic chemicals, solvants, nitric acid, thermic fluid.
Paints, Gasolene, glues, Resins, shampoos.
Suitable for highly corrosive liquids like HCL, H2SO4, Formic acid, pesticides.

Advantage

Self priming construction.
Portable because of light weight.
Saves time and labour cost.
Air motor design & flameproof design of the pump assures safety in hazardous Area.
No welding is involved in any part of tubes.
Easy maintenance, Easy to operate.

Operation Principle

Impeller is mounted on the bottom of the shaft having length 39 inch.
Electrical or air supply will rotate the shaft to transfer the fluid from barrel.
Outer tube to shaft will guide the flow.
